cGauss Class Reference

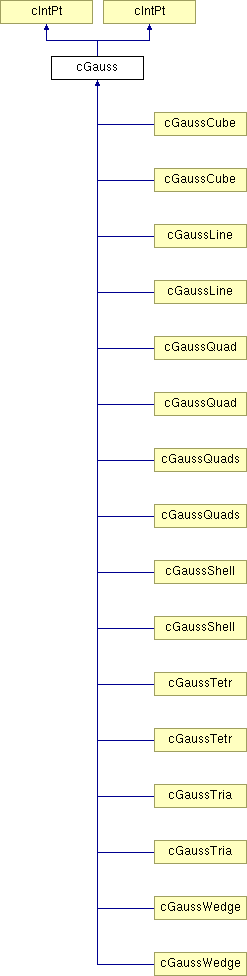

Inheritance diagram for cGauss:

List of all members.

Public Member Functions
	cGauss (cIntPt *&, cElement *, int)
virtual void	SetNatCoord (void)
	cGauss (cIntPt *&, cElement *, int)
virtual void	SetNatCoord (void)
Static Protected Attributes
static double	_dmPoint [4][4]
static double	_dmWeight [4][4]
static sNatCoord	_sPtTri1 [1]
static double	_dWgTri1 [1] = { 0.500000000000 }
static sNatCoord	_sPtTri3 [3]
static double	_dWgTri3 [3]
static sNatCoord	_sPtTri4 [4]
static double	_dWgTri4 [4]
static sNatCoord	_sPtTri6 [6]
static double	_dWgTri6 [6]
static sNatCoord	_sPtTri7 [7]
static double	_dWgTri7 [7]
static sNatCoord	_sPtTet1 [1] = { { 0.25, 0.25, 0.25 } }
static double	_dWgTet1 [1] = { 1.0/6.0 }
static sNatCoord	_sPtTet4 [4]
static double	_dWgTet4 [4]
static sNatCoord	_sPtTet5 [5]
static double	_dWgTet5 [5]

---

Member Data Documentation

static double cGauss::_dmPoint [static, protected]

Initial value:

 {
  {.000000000000000,-.577350269189626,-.774596669241483,-.861136311594053 },
  {.000000000000000, .577350269189626, .000000000000000,-.339981043584856 },
  {.000000000000000, .000000000000000, .774596669241483, .339981043584856 },
  {.000000000000000, .000000000000000, .000000000000000, .861136311594053 }
}

static double cGauss::_dmWeight [static, protected]

Initial value:

 {
  {2.00000000000000,1.000000000000000,0.555555555555555,0.347854845137454 },
  {0.00000000000000,1.000000000000000,0.888888888888888,0.652145154862546 },
  {0.00000000000000,0.000000000000000,0.555555555555555,0.652145154862546 },
  {0.00000000000000,0.000000000000000,0.000000000000000,0.347854845137454 } }

static double cGauss::_dWgTet4 [static, protected]

Initial value:

     { 1.0/24.0, 1.0/24.0, 1.0/24.0, 1.0/24.0 }

static double cGauss::_dWgTet5 [static, protected]

Initial value:

     { -2.0/15.0, 0.075, 0.075, 0.075, 0.075 }

static double cGauss::_dWgTri3 [static, protected]

Initial value:

     { 0.166666666666, 0.166666666666, 0.166666666666 }

static double cGauss::_dWgTri4 [static, protected]

Initial value:

     { -0.281250000000, 0.260416666666, 0.260416666666, 0.260416666666}

static double cGauss::_dWgTri6 [static, protected]

Initial value:

     { 0.109951743655322 * 0.5, 0.109951743655322 * 0.5,
       0.109951743655322 * 0.5, 0.223381589678011 * 0.5,
       0.223381589678011 * 0.5, 0.223381589678011 * 0.5 }

static double cGauss::_dWgTri7 [static, protected]

Initial value:

     { 0.2250000000 * 0.5, 0.1323941527 * 0.5,
       0.1323941527 * 0.5, 0.1323941527 * 0.5,
       0.1259391805 * 0.5, 0.1259391805 * 0.5,
       0.1259391805 * 0.5 }

static sNatCoord cGauss::_sPtTet4 [static, protected]

Initial value:

{    { 0.5854101966249685, 0.1381966011250150, 0.1381966011250150 },
     { 0.1381966011250150, 0.5854101966249685, 0.1381966011250150 },
     { 0.1381966011250150, 0.1381966011250150, 0.5854101966249685 },
     { 0.1381966011250150, 0.1381966011250150, 0.1381966011250150 }  }

static sNatCoord cGauss::_sPtTet5 [static, protected]

Initial value:

{    { 0.25, 0.25, 0.25 },
     { 0.50, 1.0/6.0, 1.0/6.0 },
     { 1.0/6.0, 0.50, 1.0/6.0 },
     { 1.0/6.0, 1.0/6.0, 0.50 },
     { 1.0/6.0, 1.0/6.0, 1.0/6.0 }  }

static sNatCoord cGauss::_sPtTri1 [static, protected]

Initial value:

 { { 0.333333333333, 0.333333333333, 0.0 }
}

static sNatCoord cGauss::_sPtTri3 [static, protected]

Initial value:

{    { 0.166666666666, 0.166666666666, 0.0 },
     { 0.666666666666, 0.166666666666, 0.0 },
     { 0.166666666666, 0.666666666666, 0.0 }  }

static sNatCoord cGauss::_sPtTri4 [static, protected]

Initial value:

{    { 0.333333333333, 0.333333333333, 0.0 },
     { 0.200000000000, 0.200000000000, 0.0 },
     { 0.600000000000, 0.200000000000, 0.0 },
     { 0.200000000000, 0.600000000000, 0.0 }  }

static sNatCoord cGauss::_sPtTri6 [static, protected]

Initial value:

{    { 0.816847572980459, 0.091576213509771, 0.0 },
     { 0.091576213509771, 0.816847572980459, 0.0 },
     { 0.091576213509771, 0.091576213509771, 0.0 },
     { 0.108103018168070, 0.445948490915965, 0.0 },
     { 0.445948490915965, 0.108103018168070, 0.0 },
     { 0.445948490915965, 0.445948490915965, 0.0 }  }

static sNatCoord cGauss::_sPtTri7 [static, protected]

Initial value:

{    { 0.3333333333, 0.3333333333, 0.0 },
     { 0.0597158717, 0.4701420641, 0.0 },
     { 0.4701420641, 0.0597158717, 0.0 },
     { 0.4701420641, 0.4701420641, 0.0 },
     { 0.7974269853, 0.1012865073, 0.0 },
     { 0.1012865073, 0.7974269853, 0.0 },
     { 0.1012865073, 0.1012865073, 0.0 }  }

---

The documentation for this class was generated from the following files:

• J:/Tecgraf/prj/femoop/tags/2003/ipt/gauss.h
• J:/Tecgraf/prj/femoop/trunk/ipt/gauss.h
• J:/Tecgraf/prj/femoop/tags/2003/ipt/gauss.cpp
• J:/Tecgraf/prj/femoop/trunk/ipt/gauss.cpp
