TdkDisplay Class Reference
[The Control Module]

Defines the TdkDisplay class. More...

#include <TdkDisplay.h>

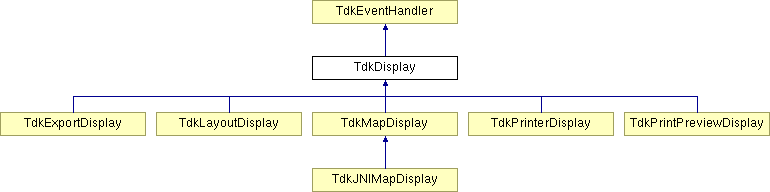

Inheritance diagram for TdkDisplay:

List of all members.

Public Member Functions
	TdkDisplay (TdkCanvas *canvas)
virtual void	fit ()
	Zoom to a level where all objects in the map can be seen.
virtual void	zoomArea (double x0, double y0, double x1, double y1)
	Zoom to a given area.
virtual void	zoom (double factor)
	Zoom by a fixed factor maintaining the center location.
virtual void	zoom (double xc, double yc, double factor)
	Zoom by a fixed factor.
virtual void	zoomIn (double factor)
	Zoom in by a fixed factor maintaining the center location.
virtual void	zoomIn (double xc, double yc, double factor)
	Zoom in by a fixed factor.
virtual void	zoomOut (double factor)
	Zoom out by a fixed factor maintaining the center location.
virtual void	zoomOut (double xc, double yc, double factor)
	Zoom out by a fixed factor.
virtual void	pan (double dx, double dy)
	Pan (drag) the map in some direction.
virtual void	draw ()
	Redraws the map (by getting all the information from the database again).
virtual void	refresh ()
	Puts in the canvas the image of the last drawn map.
virtual void	resize (int xmin, int ymin, int xmax, int ymax, TdkResizeMethods met=rsmPreserveScalePos)
	Resizes the display area.
virtual void	setScale (double scale)
virtual double	getScale ()
	Gets the map's actual visualization scale.
virtual void	maximize (TdkResizeMethods met=rsmPreserveScalePos)
	Maximizes the display area.
virtual void	viewport2Window (double vx, double vy, double &mx, double &my)
	Transform viewport(pixel) coordinates into world coordinates.
virtual void	viewport2Window (TeBox &box)
virtual void	window2Viewport (double mx, double my, double &vx, double &vy)
	Transform worlds coordinates into viewport(pixel) coordinates.
virtual void	window2Viewport (TeBox &box)
virtual void	getCenter (double &x, double &y)
virtual TdkCanvas *	getCanvas ()
	Gets the canvas associated with the map (the canvas where the map is drawn).
virtual void	setBackColor (const TeColor &bc)
virtual TeColor &	getBackColor ()
virtual void	setViewport (const TeBox &viewport)
virtual TeBox &	getViewport ()
virtual void	getViewport (double &x1, double &y1, double &x2, double &y2)
virtual void	setWindow (const TeBox &window)
virtual TeBox &	getWindow ()
virtual void	getWindow (double &x1, double &y1, double &x2, double &y2)
virtual void	update ()
virtual void	setClipArea (double x1, double y1, double x2, double y2)
virtual void	setClipPolygon (TePolygon poly)
virtual void	setBorder (double border)
	Sets the width of the map display component.
virtual double	getBorder () const
	Gets the width of the map display component.
virtual void	setMaxNumberOfPixmaps (const int &num)
	Sets the maximum number of cached pixmaps allowed.
Cached Pixmaps Methods
Methods related to management of cached pixmaps.
virtual void	addCachedPixmap (const string &pixName, const TeBox &box)
	Adds a new pixmap in pixmap set.
virtual void	removeCachedPixmap (const string &pixName)
	Removes a pixmap in pixmap set.
virtual TdkCachedPixmap	getCachedPixmap (const string &pixName)
	Retrieves the pixmap identified by the string pixName.
virtual void	updateCachedPixmap (const string &pixName, const TdkCachedPixmap &cPix)
	Updates a cached pixmap in the pixmap set.
virtual void	cleanCachedPixmaps ()
	Cleans the pixmap set. Removes all pixmaps from pixmap set.
virtual void	setEnabledCachedPixmaps (const bool &state)
	Enables the cached pixmaps management.
virtual bool	isCachedPixmapEnabled ()
	Retrieves information about cached pixmaps management enabling. True if is enabled, False otherwise.
Protected Member Functions
	TdkDisplay ()
virtual void	updateViewport ()
virtual void	updateViewport (double x1, double y1, double x2, double y2)
virtual void	updateWindow ()
virtual void	updateWindow (double x1, double y1, double x2, double y2)
virtual void	resizeFit (int xmin, int ymin, int xmax, int ymax)
virtual void	resizePreserveScalePos (int xmin, int ymin, int xmax, int ymax)
virtual void	resizePreserveScaleCenter (int xmin, int ymin, int xmax, int ymax)
virtual void	handleVSEvent (TdkEvent &event)
virtual void	handleVSEvent (TdkPointFeedbackEvent &event)
virtual void	handleVSEvent (TdkPointSetFeedbackEvent &event)
virtual void	handleVSEvent (TdkLineFeedbackEvent &event)
virtual void	handleVSEvent (TdkRectFeedbackEvent &event)
virtual void	handleVSEvent (TdkPolylineFeedbackEvent &event)
virtual void	handleVSEvent (TdkSelectedFeedbackEvent &event)
virtual void	handleVSEvent (TdkTranslateFeedbackEvent &event)
virtual void	handleVSEvent (TdkScaleFeedbackEvent &event)
virtual void	handleVSEvent (TdkRotateFeedbackEvent &event)
virtual void	handleVSEvent (TdkEditObjectPointFeedbackEvent &event)
virtual void	handleVSEvent (TdkLineEditFeedbackEvent &event)
virtual void	handleVSEvent (TdkPolygonEditFeedbackEvent &event)
virtual void	handleVSEvent (TdkWindow2ViewportEvent &event)
virtual void	handleVSEvent (TdkViewport2WindowEvent &event)
virtual void	handleVOEvent (TdkEvent &event)
virtual void	viewportChanged ()
	This method is called when the visible area changed, and updates the pixmap in the set.
Protected Attributes
TdkCanvas *	canvas_
	Map view associated canvas.
TeColor	backColor_
TeBox	window_
TeBox	viewport_
double	border_
Private Attributes
TdkCachedPixMap	_cachedPixmaps
	Map of cached pixmaps.
unsigned int	_numberOfCachedPixmaps
	Number of cached pixmaps used.
unsigned int	_maxnumberOfCachedPixmaps
	Maximum number of cached pixmaps allowed.
bool	_enableCachedPixmap
	True - cached pixmaps management enabled, False otherwise.

---

Detailed Description

Defines the TdkDisplay class.

---

Constructor & Destructor Documentation

TdkDisplay::TdkDisplay

(

TdkCanvas *

canvas

)

[inline]

TdkDisplay::TdkDisplay

(

)

[inline, protected]

---

Member Function Documentation

virtual void TdkDisplay::fit

(

)

[inline, virtual]

Zoom to a level where all objects in the map can be seen.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

virtual void TdkDisplay::zoomArea	(	double	x0,
		double	y0,
		double	x1,
		double	y1
	)			[inline, virtual]

Zoom to a given area.

Parameters:

	x0	X world coordinate of the location at the top left corner of the area.
	y0	Y world coordinate of the location at the top left corner of the area.
	x1	X world coordinate of the location at the bottom right corner of the area.
	y1	Y world coordinate of the location at the bottom right corner of the area.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

virtual void TdkDisplay::zoom

(

double

factor

)

[inline, virtual]

Zoom by a fixed factor maintaining the center location.

Parameters:

factor

Zoom factor.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

virtual void TdkDisplay::zoom	(	double	xc,
		double	yc,
		double	factor
	)			[inline, virtual]

Zoom by a fixed factor.

Parameters:

	xc	X world coordinate of the location to be centralized in the new zoom level.
	yc	Y world coordinate of the location to be centralized in the new zoom level.
	factor	Zoom factor.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

void TdkDisplay::zoomIn

(

double

factor

)

[virtual]

Zoom in by a fixed factor maintaining the center location.

Parameters:

factor

Zoom factor.

void TdkDisplay::zoomIn	(	double	xc,
		double	yc,
		double	factor
	)			[virtual]

Zoom in by a fixed factor.

Parameters:

	xc	X world coordinate of the location to be centralized in the new zoom level.
	yc	Y world coordinate of the location to be centralized in the new zoom level.
	factor	Zoom factor.

void TdkDisplay::zoomOut

(

double

factor

)

[virtual]

Zoom out by a fixed factor maintaining the center location.

Parameters:

factor

Zoom factor.

void TdkDisplay::zoomOut	(	double	xc,
		double	yc,
		double	factor
	)			[virtual]

Zoom out by a fixed factor.

Parameters:

	xc	X world coordinate of the location to be centralized in the new zoom level.
	yc	Y world coordinate of the location to be centralized in the new zoom level.
	factor	Zoom factor.

virtual void TdkDisplay::pan	(	double	dx,
		double	dy
	)			[inline, virtual]

Pan (drag) the map in some direction.

Parameters:

	dx	Horizontal deslocation in world coordinates.
	dy	Vertical deslocation in world coordinates.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

virtual void TdkDisplay::draw

(

)

[inline, virtual]

Redraws the map (by getting all the information from the database again).

Reimplemented in TdkJNIMapDisplay, TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

void TdkDisplay::refresh

(

)

[virtual]

Puts in the canvas the image of the last drawn map.

Reimplemented in TdkMapDisplay.

void TdkDisplay::resize	(	int	xmin,
		int	ymin,
		int	xmax,
		int	ymax,
		TdkResizeMethods	met = rsmPreserveScalePos
	)			[virtual]

Resizes the display area.

Parameters:

	xmin	X of top left coordinate in pixels.
	ymin	Y of top left coordinate in pixels.
	xmax	X of bottom right coordinate in pixels.
	ymax	Y of bottom right coordinate in pixels.
	met	Resize method.

Reimplemented in TdkLayoutDisplay, and TdkMapDisplay.

void TdkDisplay::setScale

(

double

scale

)

[virtual]

double TdkDisplay::getScale

(

)

[virtual]

Gets the map's actual visualization scale.

Returns:

The scale value.

void TdkDisplay::maximize

(

TdkResizeMethods

met = rsmPreserveScalePos

)

[virtual]

Maximizes the display area.

Parameters:

met

Resize method.

void TdkDisplay::viewport2Window	(	double	vx,
		double	vy,
		double &	mx,
		double &	my
	)			[virtual]

Transform viewport(pixel) coordinates into world coordinates.

Parameters:

	vx	X coordinate in pixels.
	vy	Y coordinate in pixels.
	mx	Resulting x world coordinate.
	my	Resulting y world coordinate.

void TdkDisplay::viewport2Window

(

TeBox &

box

)

[virtual]

void TdkDisplay::window2Viewport	(	double	mx,
		double	my,
		double &	vx,
		double &	vy
	)			[virtual]

Transform worlds coordinates into viewport(pixel) coordinates.

Parameters:

	mx	X world coordinate.
	my	Y world coordinate.
	vx	Resulting x coordinate in pixels.
	vy	Resulting y coordinate in pixels.

void TdkDisplay::window2Viewport

(

TeBox &

box

)

[virtual]

void TdkDisplay::getCenter	(	double &	x,
		double &	y
	)			[virtual]

Reimplemented in TdkPrintPreviewDisplay.

TdkCanvas * TdkDisplay::getCanvas

(

)

[inline, virtual]

Gets the canvas associated with the map (the canvas where the map is drawn).

void TdkDisplay::setBackColor

(

const TeColor &

bc

)

[inline, virtual]

TeColor & TdkDisplay::getBackColor

(

)

[inline, virtual]

void TdkDisplay::setViewport

(

const TeBox &

viewport

)

[inline, virtual]

TeBox & TdkDisplay::getViewport

(

)

[inline, virtual]

void TdkDisplay::getViewport	(	double &	x1,
		double &	y1,
		double &	x2,
		double &	y2
	)			[inline, virtual]

void TdkDisplay::setWindow

(

const TeBox &

window

)

[inline, virtual]

TeBox & TdkDisplay::getWindow

(

)

[inline, virtual]

void TdkDisplay::getWindow	(	double &	x1,
		double &	y1,
		double &	x2,
		double &	y2
	)			[inline, virtual]

void TdkDisplay::update

(

)

[inline, virtual]

void TdkDisplay::setClipArea	(	double	x1,
		double	y1,
		double	x2,
		double	y2
	)			[inline, virtual]

void TdkDisplay::setClipPolygon

(

TePolygon

poly

)

[inline, virtual]

void TdkDisplay::setBorder

(

double

border

)

[virtual]

Sets the width of the map display component.

Parameters:

border

Border width on % of map bouding box.

double TdkDisplay::getBorder

(

)

const [virtual]

Gets the width of the map display component.

Returns:

Border width on % of map bouding box.

void TdkDisplay::addCachedPixmap	(	const string &	pixName,
		const TeBox &	box
	)			[virtual]

Adds a new pixmap in pixmap set.

Parameters:

	pixName	The name of pixmap created. This is an identifier of new pixmap.
	box	Visible area. Box of the area painted in the pixmap created.

void TdkDisplay::removeCachedPixmap

(

const string &

pixName

)

[virtual]

Removes a pixmap in pixmap set.

Parameters:

pixName

The name of pixmap to be removed. This is a pixmap identifier.

TdkCachedPixmap TdkDisplay::getCachedPixmap

(

const string &

pixName

)

[virtual]

Retrieves the pixmap identified by the string pixName.

Parameters:

pixName

The name of pixmap. Name identifies the pixmap in the map.

Returns:

Information about pixmap indentified by pixname.

void TdkDisplay::updateCachedPixmap	(	const string &	pixName,
		const TdkCachedPixmap &	cPix
	)			[virtual]

Updates a cached pixmap in the pixmap set.

Parameters:

	pixName	Identifier of pixmap.
	cPix	Information about the pixmap to change.

void TdkDisplay::cleanCachedPixmaps

(

)

[virtual]

Cleans the pixmap set. Removes all pixmaps from pixmap set.

void TdkDisplay::setEnabledCachedPixmaps

(

const bool &

state

)

[virtual]

Enables the cached pixmaps management.

Parameters:

state

True - use cached pixmaps, Fals - not use cached pixmaps.

bool TdkDisplay::isCachedPixmapEnabled

(

)

[virtual]

Retrieves information about cached pixmaps management enabling. True if is enabled, False otherwise.

void TdkDisplay::setMaxNumberOfPixmaps

(

const int &

num

)

[virtual]

Sets the maximum number of cached pixmaps allowed.

Parameters:

num

Maximum number of cached pixmaps in pixmaps set.

void TdkDisplay::updateViewport

(

)

[inline, protected, virtual]

void TdkDisplay::updateViewport	(	double	x1,
		double	y1,
		double	x2,
		double	y2
	)			[inline, protected, virtual]

void TdkDisplay::updateWindow

(

)

[inline, protected, virtual]

void TdkDisplay::updateWindow	(	double	x1,
		double	y1,
		double	x2,
		double	y2
	)			[inline, protected, virtual]

void TdkDisplay::resizeFit	(	int	xmin,
		int	ymin,
		int	xmax,
		int	ymax
	)			[protected, virtual]

void TdkDisplay::resizePreserveScalePos	(	int	xmin,
		int	ymin,
		int	xmax,
		int	ymax
	)			[protected, virtual]

void TdkDisplay::resizePreserveScaleCenter	(	int	xmin,
		int	ymin,
		int	xmax,
		int	ymax
	)			[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkEvent &

event

)

[protected, virtual]

Reimplemented from TdkEventHandler.

Reimplemented in TdkLayoutDisplay, TdkMapDisplay, and TdkPrintPreviewDisplay.

void TdkDisplay::handleVSEvent

(

TdkPointFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkPointSetFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkLineFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkRectFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkPolylineFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkSelectedFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkTranslateFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkScaleFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkRotateFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkEditObjectPointFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkLineEditFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkPolygonEditFeedbackEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkWindow2ViewportEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVSEvent

(

TdkViewport2WindowEvent &

event

)

[protected, virtual]

void TdkDisplay::handleVOEvent

(

TdkEvent &

event

)

[protected, virtual]

Reimplemented from TdkEventHandler.

Reimplemented in TdkLayoutDisplay, and TdkMapDisplay.

void TdkDisplay::viewportChanged

(

)

[protected, virtual]

This method is called when the visible area changed, and updates the pixmap in the set.

---

Member Data Documentation

TdkCanvas* TdkDisplay::canvas_ [protected]

Map view associated canvas.

TeColor TdkDisplay::backColor_ [protected]

TeBox TdkDisplay::window_ [protected]

TeBox TdkDisplay::viewport_ [protected]

double TdkDisplay::border_ [protected]

TdkCachedPixMap TdkDisplay::_cachedPixmaps [private]

Map of cached pixmaps.

unsigned int TdkDisplay::_numberOfCachedPixmaps [private]

Number of cached pixmaps used.

unsigned int TdkDisplay::_maxnumberOfCachedPixmaps [private]

Maximum number of cached pixmaps allowed.

bool TdkDisplay::_enableCachedPixmap [private]

True - cached pixmaps management enabled, False otherwise.

---

The documentation for this class was generated from the following files:

• D:/usuarios/rodrigof/svn/tdk/src/peer/components/control/displays/TdkDisplay.h
• D:/usuarios/rodrigof/svn/tdk/src/peer/components/control/displays/TdkDisplay.cpp

---
